Panel Hook
Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook Panel Hook

Panel Hook

In stock
SKU
H3005x
The Panel Hook series is perfect for art panels, sign-boards, acoustic panels, display boards, etc. In many applications these are a very good alternative to standoffs.
See full product description »
$5.55
  • Frame/Object Attachment : Rope/Crafted Macramé, Z-Clip/Cleat
  • Panel/Object Type : Crushable Panels (Fluted PVC - Foamcore - etc.), Rigid Panels (Sintra - Metal Sheet - Wood - etc.)
  • Weight Capacity : 22 lbs (10 Kg) per attachment
  • Hook Activation : Manually Activated

Product Details

The Panel Hook series is perfect for art panels, sign-boards, acoustic panels, display boards, etc. In many applications these are a very good alternative to standoffs. However, with these hooks there is no need to drill holes in your panels and your wall display may be re-aligned without patching and re-painting. This Panel Hook is designed to support a wide variety of display panel thicknesses - on its "rail" or "platform". The thumb screw may be inserted into either side, which makes it convenient for either of left or right-handed use.

The wide version of Panel Hooks design is created to allow for two columns of panels to be suspended from one common cable passing between and behind the two columns. The objective is to get more done with less hardware and expense.

The two-sided and wide, two-sided version can hang panels back to back in window displays or be used to create room dividers or 2-sided displays for tradeshow or museum presentations. The two-sided, wide Panel Hook could be your most economical if its features match to your needs. Yet, most of the various hardware fittings are sandwiched between the display panels and out of view. This design is also created to allow for two side-by-side columns of panels to be suspended from one common cable passing between and behind the columns.

The Panel Hook comes supplied with a spring clip, which is removeable. The Panel Hook Wide is shipped with two spring clips. The clip front-loads panels to create a consistent professional appearance, even among various panel thicknesses.

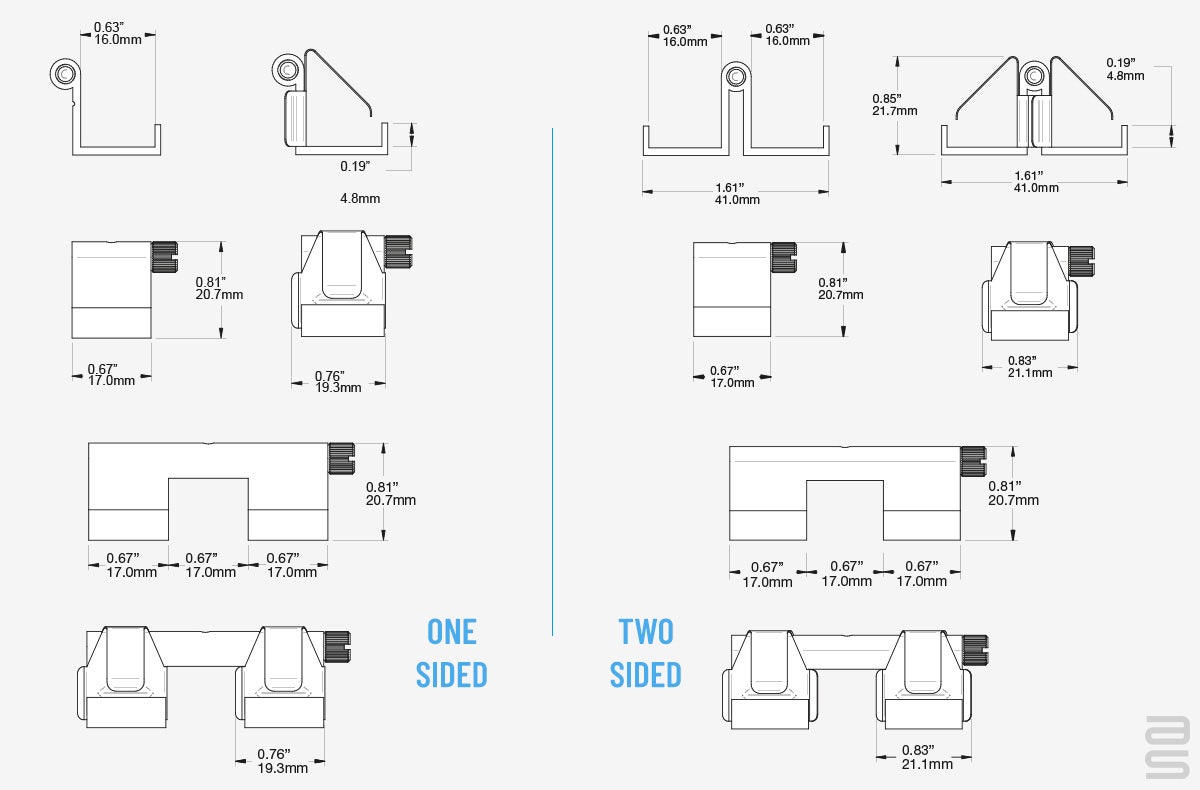

The Panel Hook series of parts is compatible with panels of between 3/16 inch (4.75 mm) and up to 5/8 inch (16 mm) thick, but is limited to ½ inch material when the Clip is used. Replacement clips may be ordered separately as H3019.

For panels of less than 3/16 inch see our H3004 Utility Hook.

Step 3

This product
is part of
Step 3

Step 2

Return to
Step 2

Step 1

Return to
Step 1

Technical Specifications

  • SKU H3005x
  • Compatible with Cables/Cords
  • Frame/Object Attachment Rope/Crafted Macramé, Z-Clip/Cleat
  • Panel/Object Type Crushable Panels (Fluted PVC - Foamcore - etc.), Rigid Panels (Sintra - Metal Sheet - Wood - etc.)
  • Cable Location Cables Pass behind Panels, Double-sided Display
  • Weight Capacity 22 lbs (10 Kg) per attachment
  • Hook Activation Manually Activated
  • Product Marking Stamped =AS=
  • Product Patented Patented
  • Product Patent Number D601,880 | D707,110 | D720,985 | D719,438
  • Legacy Systems Families Cable System
