Display Reveal End-Cap
Display Reveal End-Cap Display Reveal End-Cap Display Reveal End-Cap Display Reveal End-Cap

Display Reveal End-Cap

In stock
SKU
B0005AC

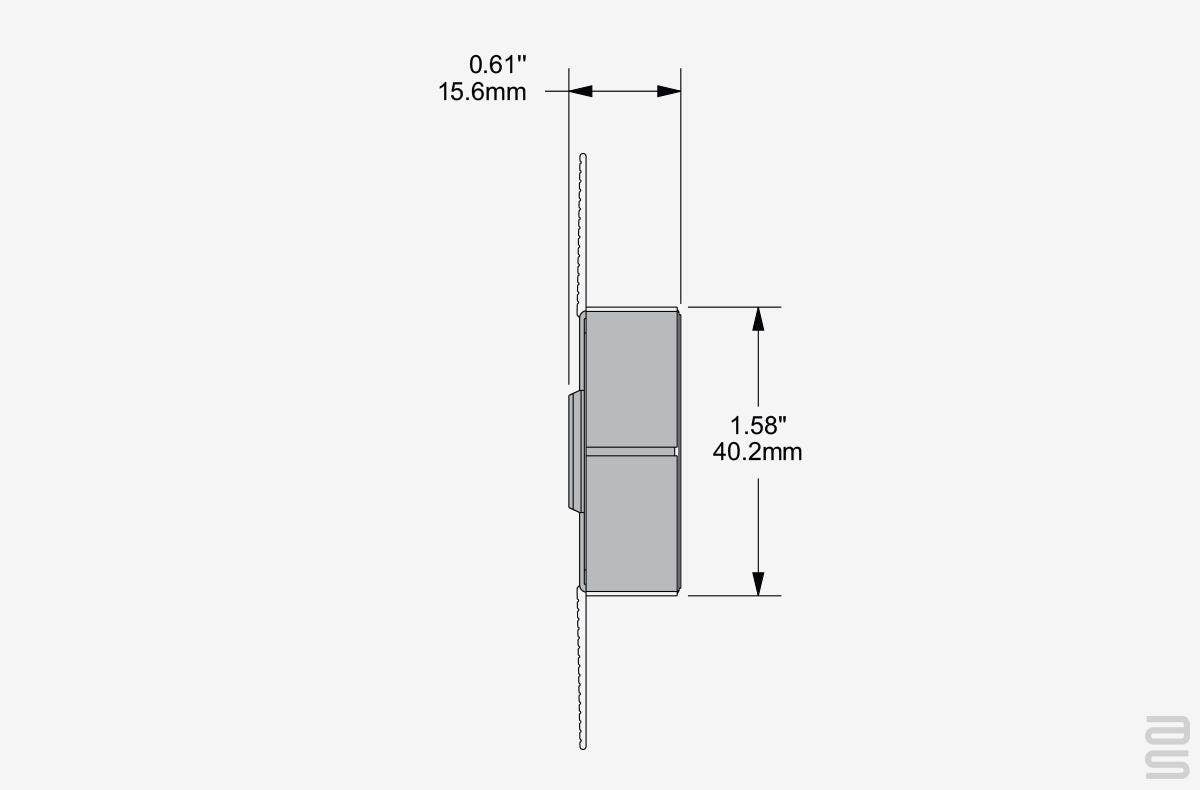

Display Reveal End-Caps are designed to provide a clean finished look to the ends of your Display Reveal track runs.  Each End-Cap Assembly is 16.875 in. (42.8 cm) long, with the actual End-Cap being attached to nearly 17 in. of track, designed so it can easily fit between studs. If not, it’s easy to cut the tail it to fit your needs. It’s also reversible, so it’s simple to use at any end.

See full product description »
$29.50
  • Compatible with : Display Reveal
  • Weight Capacity : 110 lbs (50 Kg) per linear foot
  • Installation Surface : Linear Wall
  • Fastening : Hidden Fasteners
  • Compatible with : Cables, Rods
  • Cable/Rod Presentation : Suspended

Product Details

Display Reveal End-Caps are designed to provide a clean finished look to the ends of your Display Reveal track runs. Each End-Cap Assembly is 16.875 in. (42.8 cm) long, with the actual End-Cap being attached to nearly 17 in. of track, designed so it can easily fit between studs. If not, it’s easy to cut the tail it to fit your needs. It’s also reversible, so it’s simple to use at any end.

Acting as a continuation of our Display Reveal, it is placed at an end of a run that you are NOT planning on mitering around a corner. Just like the track itself, it's built into the wall structure and sized to be compatible with common 1/2 in. and 5/8 in. thick gypsum wallboard and requires the same installation method and backing as our Display Reveal.

Our End-Cap assembly is needed for any ‘non-mitered’ reveal track termination point, such as; within the middle of a drywall panel, abutting masonry, or ending flush in a corner.

The End-Cap assembly offers a labor saving and cleaner installation solution for your Display Reveal layout for all your track terminations. Once in place, it provides an easy continuous drywall mud screed across the ends of the reveal channel. Most importantly, it simultaneously places a visually clean, stainless-steel cap at each end of your layout, as seen from the end user. Permanently hiding from view, all construction support pieces, raw material, gaps or any other undesirable elements.

Step 3

Go to
Step 3

Step 2

Go to
Step 2

Step 1

This product
is part of
Step 1

Technical Specifications

  • SKU B0005AC
  • Material Extruded aluminum track (Display Reveal) with Stainless Steel End Cap
  • Compatible with Display Reveal
  • Weight Capacity 110 lbs (50 Kg) per linear foot
  • Installation Surface Linear Wall
  • Mounting Style Imbedded / Flush
  • Fastening Hidden Fasteners
  • Installation Skill Contractor
  • Compatible with Cables, Rods
  • Cable/Rod Presentation Suspended
  • Vertical Element Compatibility P-End Cable, P-End Cord, P-End Rod, P-End Heavy-Duty Rod, Anti-Theft Secure Rod
  • Legacy Systems Families Reveal System
