Display Reveal is the strongest concealed track designed to hang pictures on the wall. The only Wall Reveal on which you can hang art. Professional Display Reveal embedded within the wall structure.
This product ships via Motor Freight (LTL).
Contact Customer Service (866-935-6949) to get a freight quote.
Shipping fees are NOT calculated when ordering online.
- Detail : Embedded within the wall structure, the strongest concealed professional hanging track available.
- Finish : Anodized silver (field paintable)
- Weight Capacity : 110 lb/ft (164 kg/m)

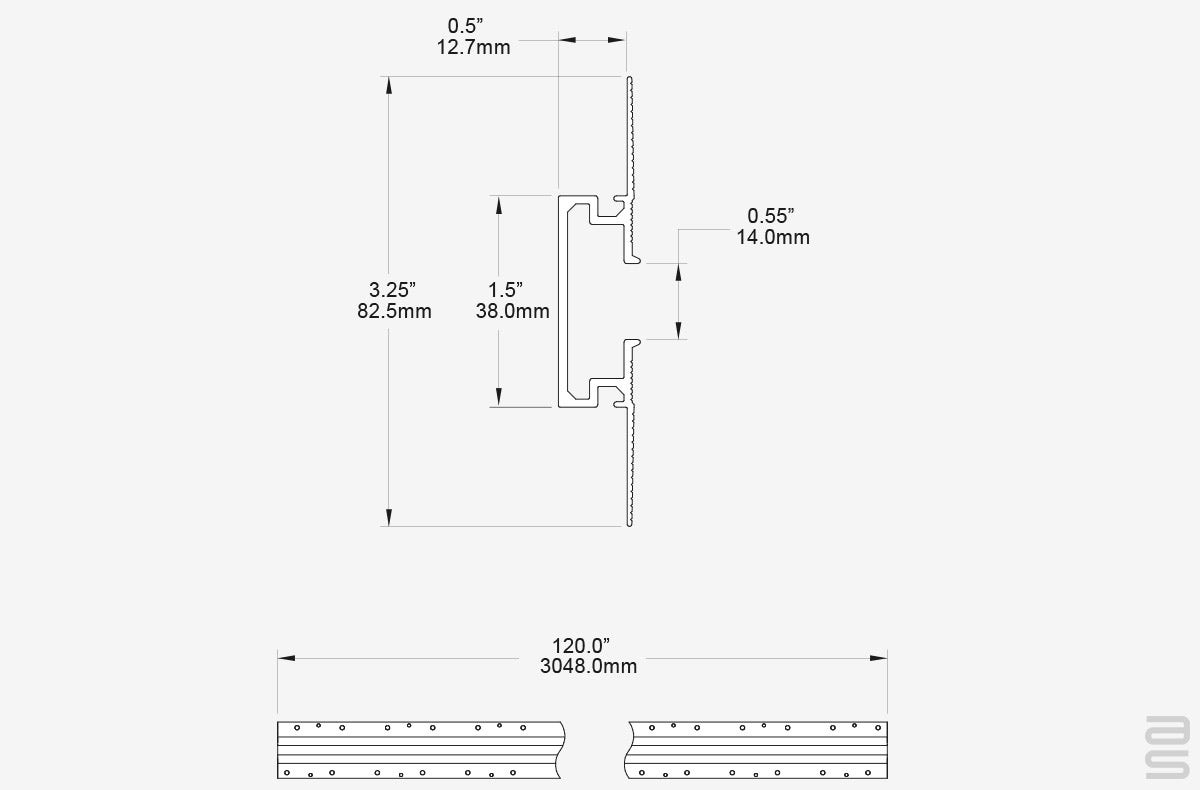

- Track Length : 120 in (10 ft)/305 cm
- Installation Surface : Linear Wall
- Fastening : Hidden Fasteners
- Compatible with : Cables, Rods
- Cable/Rod Presentation : Suspended
The Display Reveal is the only Wall Reveal ever designed on which one you can hang art, pictures, objects using cable, rod and industry-leading variety of hooks and fittings. It is a Reveal but also a discreet and fully functional concealed wall hanging system for hanging pictures on the wall.

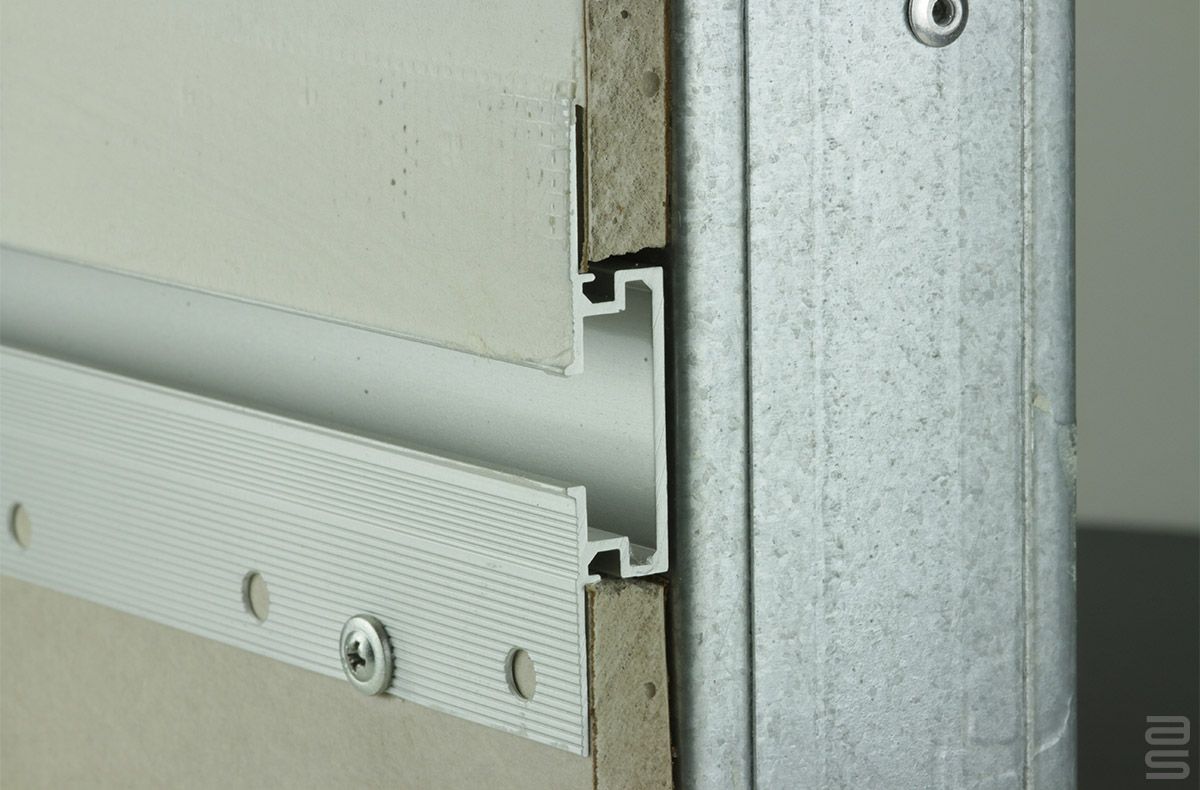

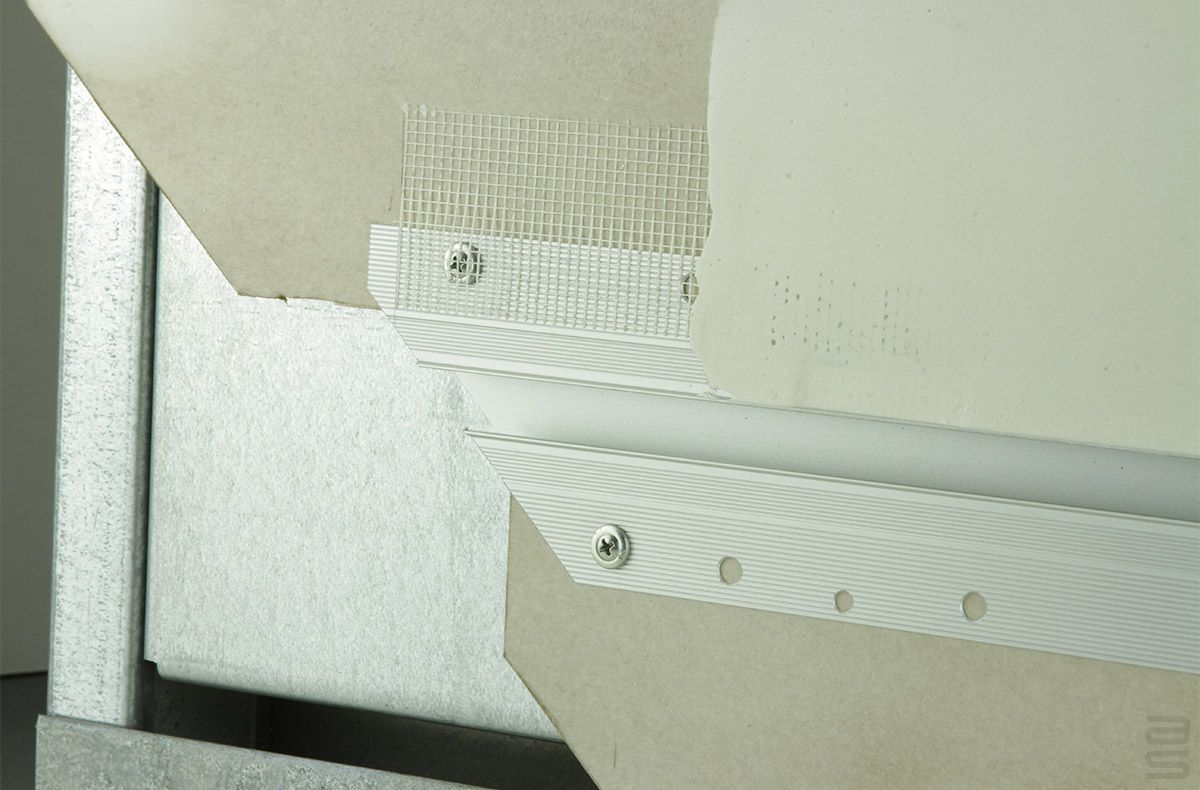

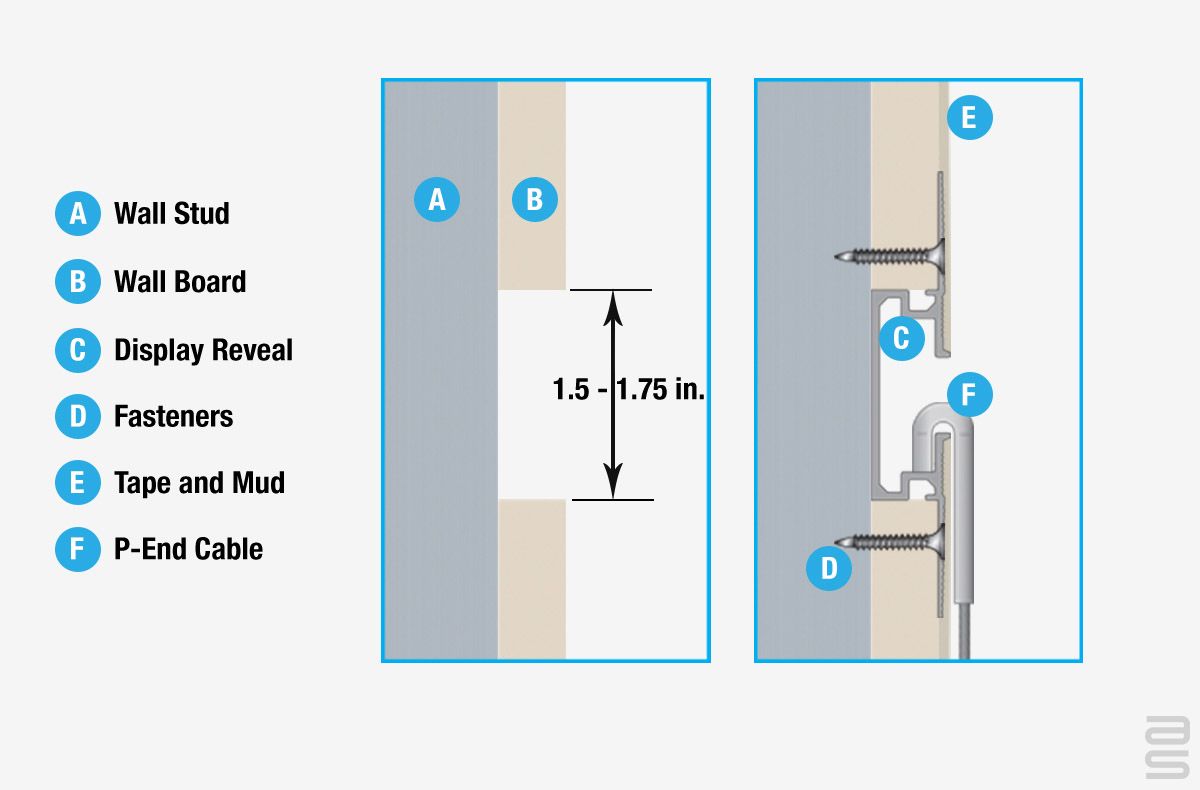

The Display Reveal assure you a much different and neat look. This is in fact not a surface mounted track but an embedded wall reveal. It is built into within the wall structure, with backing between studs, during built out. It is sized to be compatible with common 1/2" and 5/8" thick gypsum wallboard. Once installed and the wall is finished, it creates a natural look. The clever design transfers weight suspended from Cable and Rod into the reveal cavity, avoiding any reliance on the reveal lip and protect from potential damage or cracking of the joint compound while hanging pictures on the wall. The Display Reveal is a solid and reliable wall hanging system that supports 110 lb/ft (164 kg/m). The color silver satin gives the Display Reveal a sharp and discreet look.
AS Hanging Display Systems has developed a series of integrated and concealed Systems, which can be new build or in renovations. These systems offer huge advantages to end users: a versatile, unviewable and easy-to-use hanging system available throughout the entire space. Create displays and décors quickly and easily without damaging walls and without additional cost. This also results in considerable steps towards sustainable building management and cost savings.
End Cap: While it is easy to miter the track around inside and outside corners for a continuous bold look, wherever you do have termination points, you will certainly want to use our Display Reveal End Cap to cleanly finish off the look at those points.

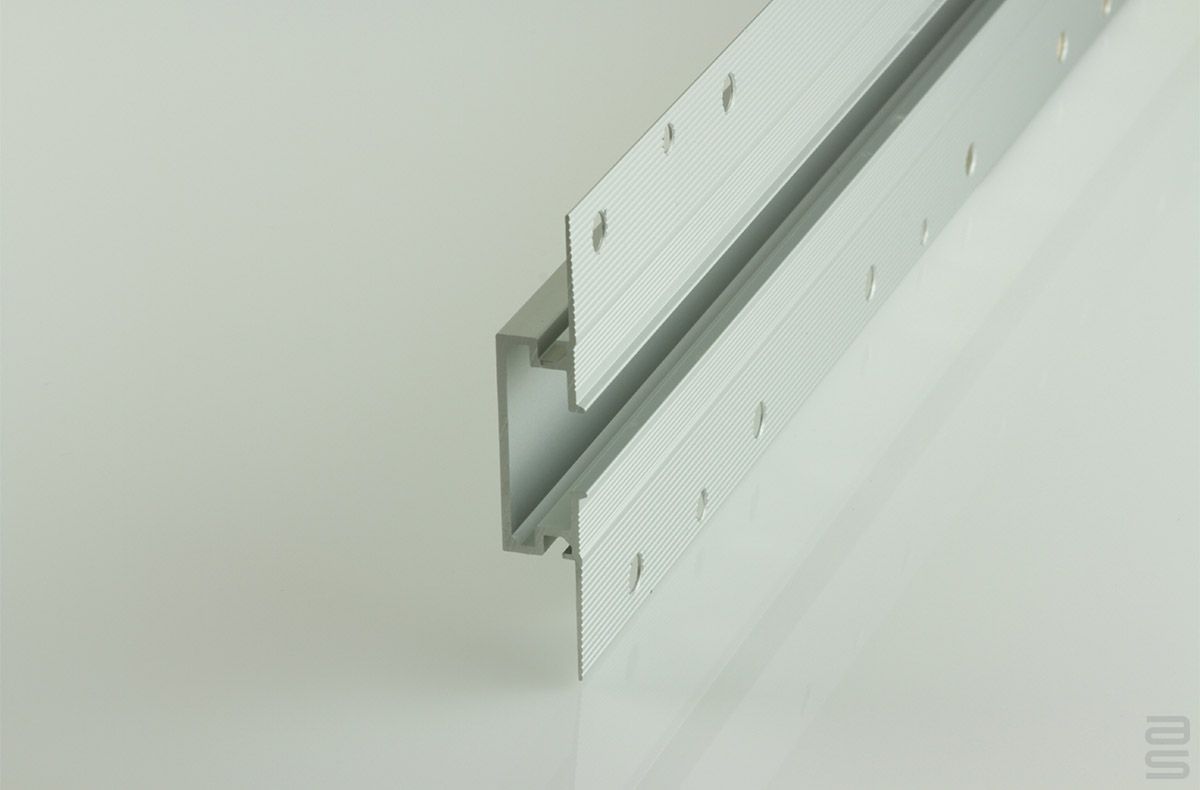

Hole pattern: Mounting flanges are pre-perforated to assist in attaching to structure. Holes do not have particular placement and may or may not align with mounting screws.
Fasteners: Installer is responsible to select appropriate fasteners for a particular installation.

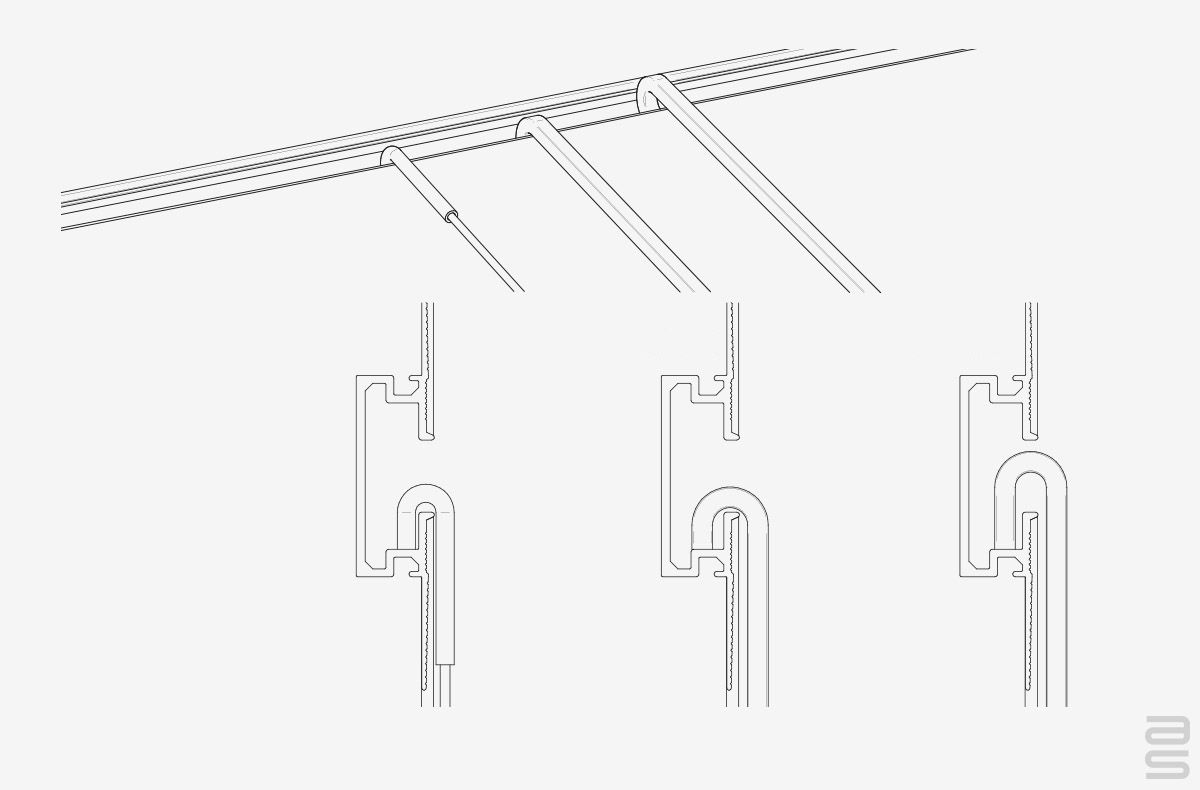

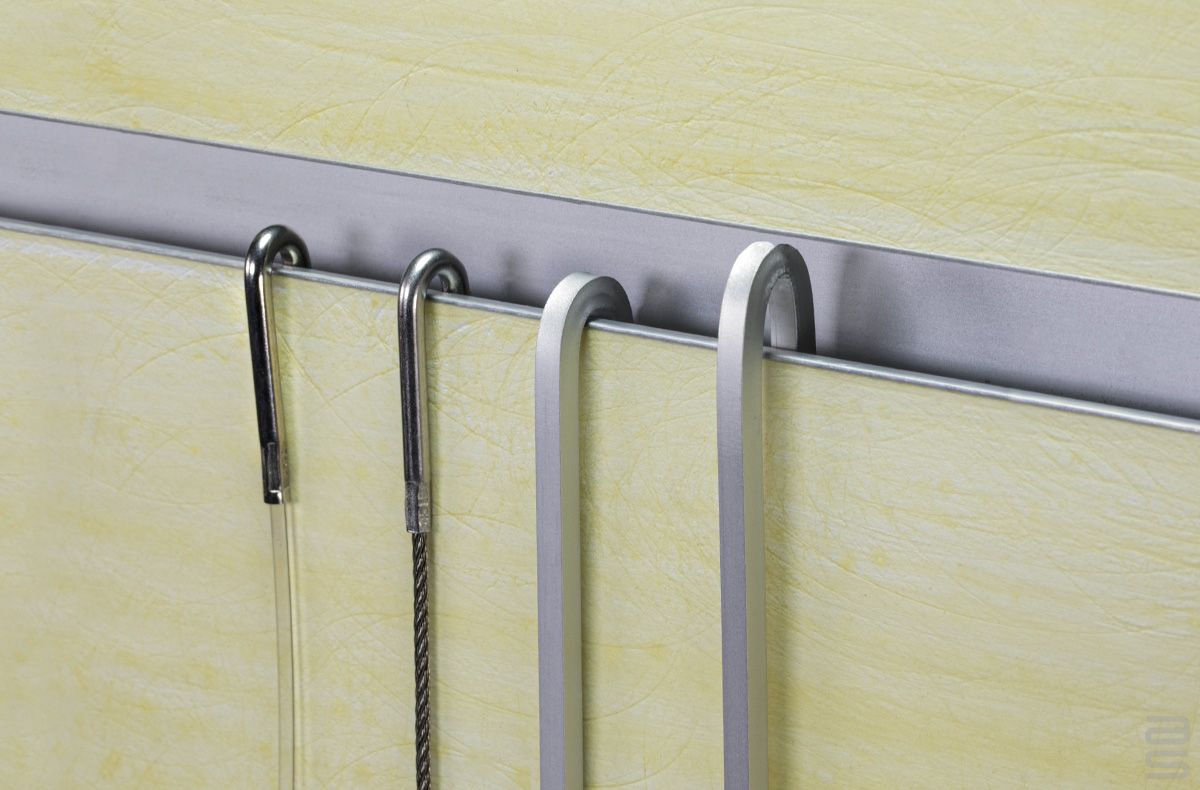

Only cable and rod made by AS Hanging Display Systems shall be used to hang loads from Display Reveal. These cable and rod transfer the weight to the inside of the display wall reveal chamber and not to the lip of the reveal opening. Never shall a load be suspended directly from the lip of the reveal opening.
Important Shipping Information
This product ships via Motor Freight (LTL). Motor freight is used for items that are not able to ship by Economy, Expedited or Express service because of their special handling requirements, large dimensions or weight. Shipping fees are NOT calculated when ordering online.
Complete your checkout and we will contact you to complete your freight quote or Contact Customer Service (866-935-6949) to get a freight quote.
Hang with the Best®
AS recommended by leading experts, and your neighbors!
Let us ASsist you with your project! 1-866-935-6949
- SKU A1025

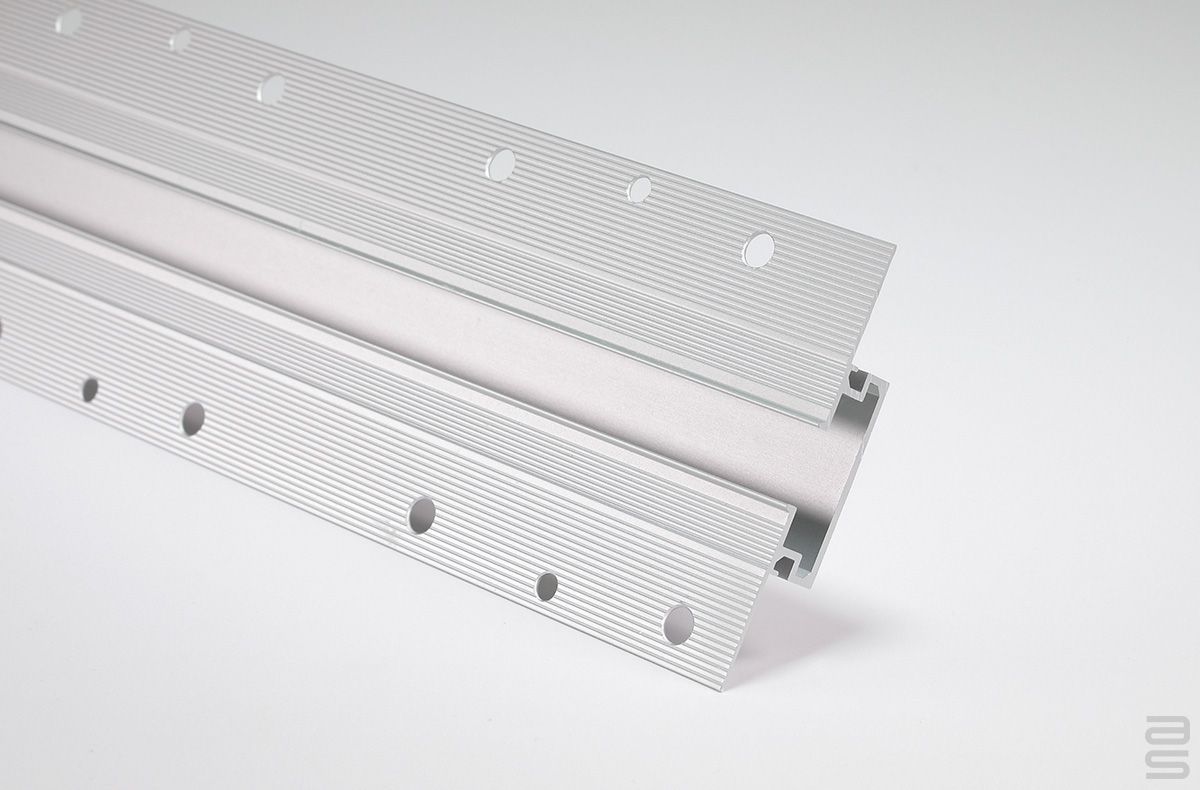

- Material Extruded aluminum track
- Finish Anodized silver (field paintable)
- Weight Capacity 110 lb/ft (164 kg/m)
- Track Length 120 in (10 ft)/305 cm
- Capabilities Anti-Theft, Secure
- Installation Surface Linear Wall
- Mounting Style Imbedded / Flush
- Fastening Hidden Fasteners
- Installation Skill Contractor
- Compatible with Cables, Rods
- Cable/Rod Presentation Suspended
- Vertical Element Compatibility P-End Cable, P-End Cord, P-End Rod, P-End Stainless Steel Rod, Anti-Theft Secure Rod
- Product Patented Patented
- Product Patent Number D752,422
- Legacy Systems Families Reveal System
