T-End Cable Tensioner
T-End Cable Tensioner T-End Cable Tensioner T-End Cable Tensioner T-End Cable Tensioner T-End Cable Tensioner

T-End Cable Tensioner

In stock
SKU
U5495
This sleek new tensioner is both discreet and features a modern design with clean lines. It also offers one more feature. Because it couples with the T-End fitting it also lends Anti-Theft capability.
See full product description »
$11.75
  • Finish : Anodized Machined Aluminum
  • Includes : Tensioner assembly with T-End Cable fitting, shock absorbing spring, Cable Stop to attach to upper steel cable
  • Capabilities : Earthquake Mitigation
  • Works with : Cables
  • Compatible with : Click Rail Track
  • Cable/Rod Presentation : Tensioned

Product Details

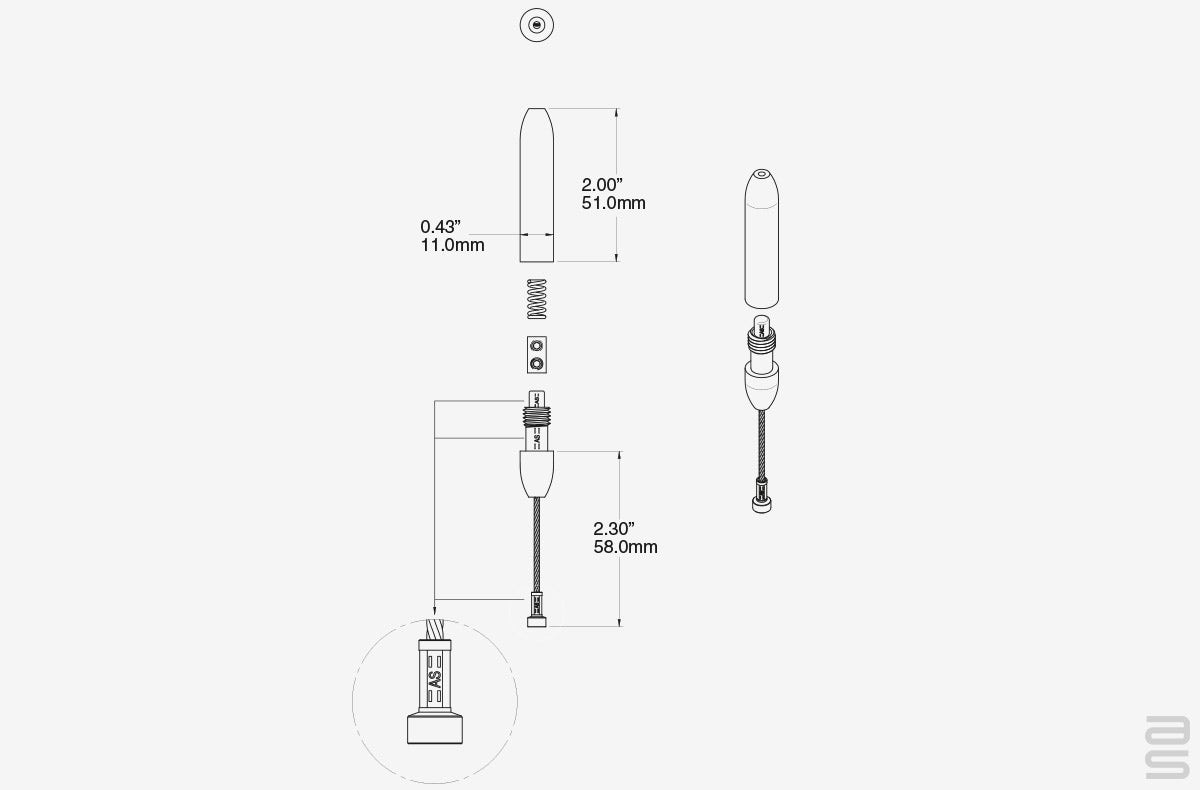

This sleek tensioner is both discreet and features a modern design with clean lines. It also offers one more feature. Because it couples with the T-End fitting it also lends Anti-Theft capability. The tensioner is provided complete with a lower cable and T-End fitting, making it compatible with Click Rail track. The short, lower cable is 3-inches long, placing the tensioner quite close to the lower track. To tighten the cable, simply screw the two halves together. Capable of exerting considerably more tension than "Tensioning Spring". It may make a good match to Twist-End or T-End upper cables. Only for use with steel cables and never with Nylon Cords.

Notes

T-End fittings may only be inserted into Click Rail track with access to the track end or via a slight field modification to the track. Requires an upper steel cable of your choice (T-End cable recommended for Anti-Theft capability) - not included.

Step 3 - Next Step

Go to
Step 3

Step 2 - Current

This product
is part of
Step 2

Step 1 - Finished

Return to
Step 1

Technical Specifications

  • SKU U5495
  • Material Aluminum
  • Finish Anodized Machined Aluminum
  • Includes Tensioner assembly with T-End Cable fitting, shock absorbing spring, Cable Stop to attach to upper steel cable
  • Capabilities Earthquake Mitigation
  • Works with Cables
  • Compatible with Click Rail Track
  • Cable/Rod Presentation Tensioned
  • Product Marking Stamped =AS=
  • Product Patented Patented
  • Product Patent Number D814,269
  • Legacy Systems Families Tensioned Cable System
