Econo Side Clamp
Econo Side Clamp Econo Side Clamp Econo Side Clamp Econo Side Clamp

Econo Side Clamp

In stock
SKU
H3040x
This is two fittings that are suited for hanging all types of panels in a vertical orientation and these will support material up to 5/32 inch thick.
See full product description »
$3.60
  • Finish : Anodized Matte Aluminum
  • Includes : Clamp and Allen key
  • Capabilities : Earthquake Mitigation, Anti-Theft
  • Panel/Object Type : Acrylic Pockets, Rigid Panels (Sintra - Metal Sheet - Wood - etc.)
  • Weight Capacity : 2.5 lbs (1.1 Kg) per attachment
  • Hook Activation : Manually Activated

Product Details

This is two fittings that we call "Econo Side Clamps". They are part of a larger series of hardware particularly well suited for hanging all types of panels in a vertical orientation and these will support material up to 5/32 inch thick. The included set screws will slightly bite into material to hold panels in a vertical axis. Not suitable for glass or other brittle materials. This item is designed to support one panel.

Step 3

This product
is part of
Step 3

Step 2

Return to
Step 2

Step 1

Return to
Step 1

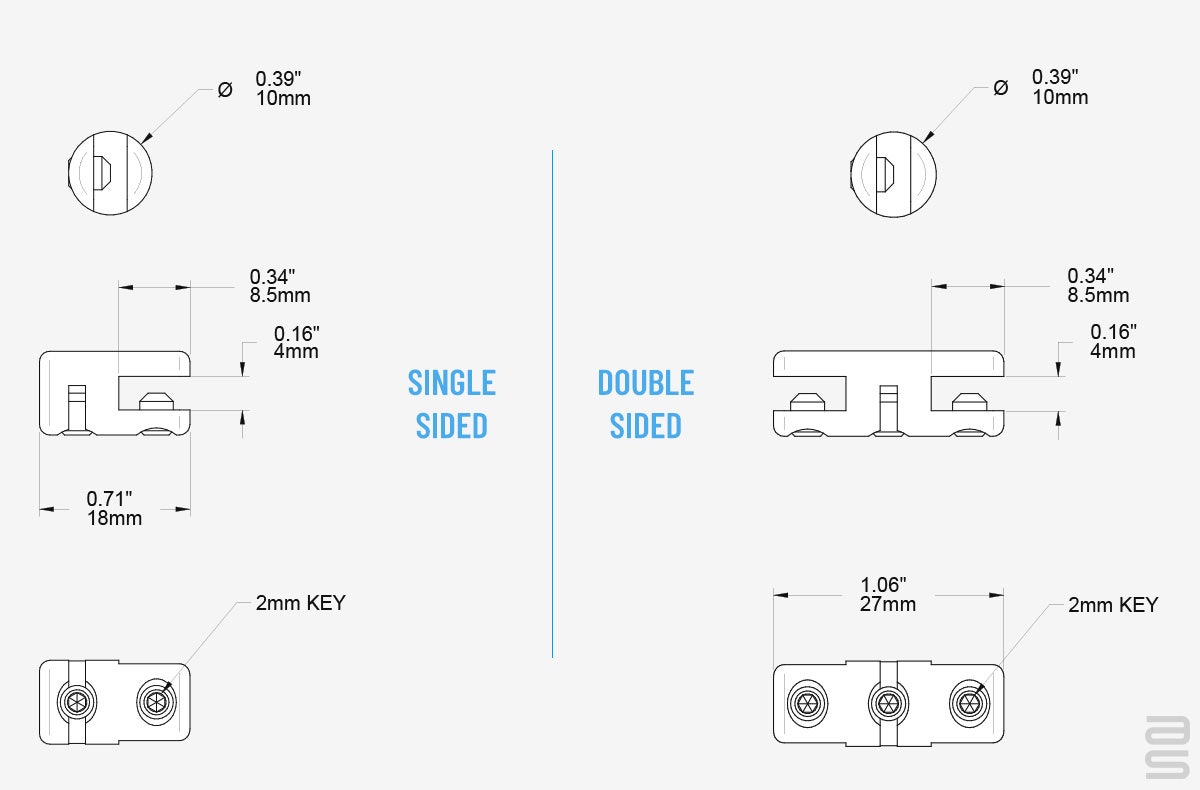

Technical Specifications

  • SKU H3040x
  • Material Aluminum
  • Finish Anodized Matte Aluminum
  • Includes Clamp and Allen key
  • Capabilities Earthquake Mitigation, Anti-Theft
  • Compatible with Cables/Cords
  • Panel/Object Type Acrylic Pockets, Rigid Panels (Sintra - Metal Sheet - Wood - etc.)
  • Cable Location Cables Pass beside Panels
  • Weight Capacity 2.5 lbs (1.1 Kg) per attachment
  • Hook Activation Manually Activated
  • Legacy Systems Families Cable System
