Loop End Cable - Covid-19 Protection Kit - Hanging System for Plexiglass / Glass
In stock
Art & Picture Hanging Systems
Professional, quick and easy install solution for any retail store and hospitality environments. Our cable loop allow you to hang from everything: structures, beams, trusses or tubes, and much more.
IN STOCK
- Weight Capacity : 45 lb (20 kg) per Steel Cable
- Cable/Rod Presentation : Suspended
- 2 Loop End Cable
- 2 Top Clamp
Product Details

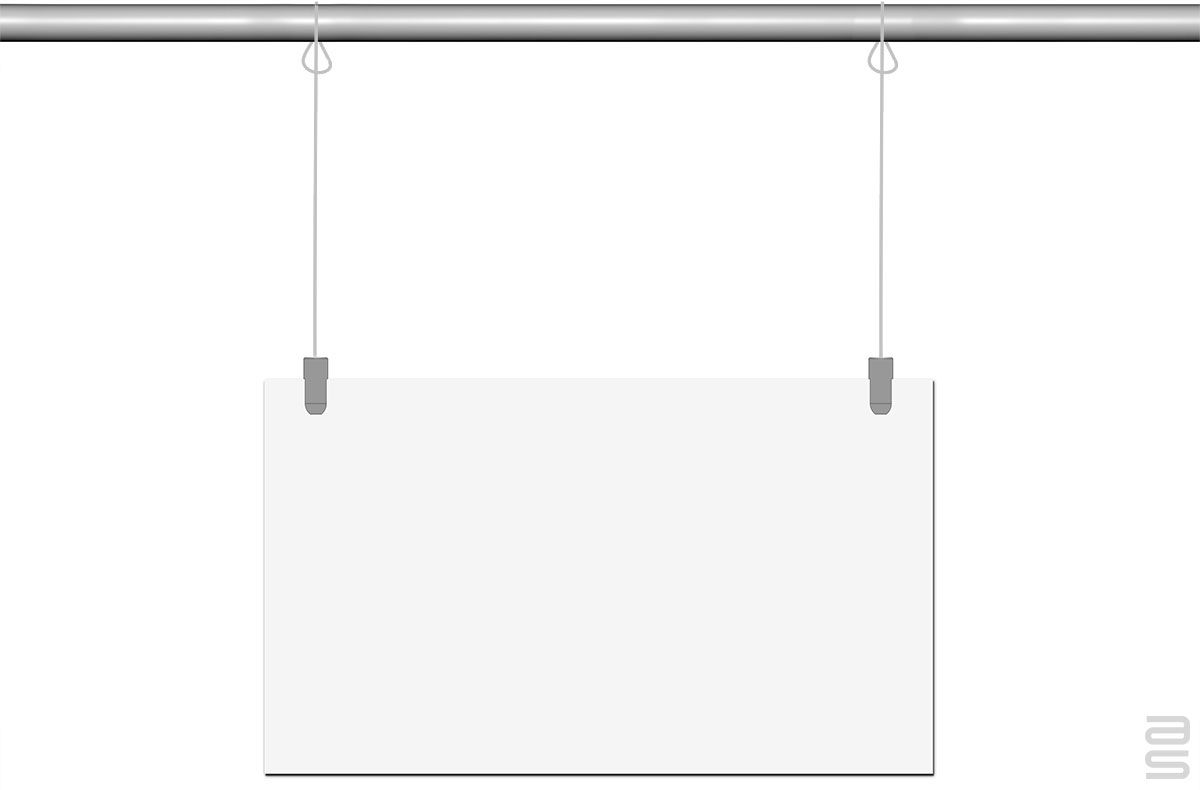

Our Loop-End Cable Covid-19 Protection Kit Hanging System for Plexiglass and Glass includes two Stainless Steel Loop End Cable and Top Clamps. This cable picture hanging system hangs plexiglass, acrylic sheets or glass panels from structures, beams, trusses or tubes, and much more.
Our cable loop allows you to hang from everywhere!
Retail solution to help you control the spread of Covid-19. Create a safer environment for your employees and customers. The plexiglass will help everyone keep a safe distance during the current Covid-19 situation.
AS Hanging Display Systems has put together a professional, quick and easy install solution for all environments where clients and staff interact, including retail stores, hairdressers, restaurants, gyms, grocery stores, clinics, and much more.
Because of the nature of the materials used and to reduce risk of damages on delivery, we have chosen to let our clients provide their own protective panels.We have a complete line of products compatible with ANY of these, whether it be acrylic panels, Plexiglass, Tempered Glass, right up to Sintra boards and foam core substrates!
It is more cost effective to obtain your own material, size and thickness you want directly. Hardware stores offer these, so you can choose directly from their inventory, according to your specific installation while you are there.
Call us at 866-935-6949 for details! We will be happy to help you!
Compatibility
Our Top Clamps are compatible with acrylic panel / plexiglass up to 1/2 in. thick, for Glass Panel follow these guidelines.
Options depend on your type of ceiling and the weight (size) of plexiglass sheet you want to use. Our cable hanger allow you to hang from everything: structures, beams, trusses or tubes, and much more.
It's recommended to order a Cable Trim Kit to ease installation.
Plexiglass / Acrylic Thickness vs Weight (4 x 6 ft. sheet)
| Thickness | Weight | Compatible with |
| 1/4 in. | 45 lb | Top Clamp, Small or Medium |
| 3/8 in. | 65 lb | Top Clamp, Large |
| 1/2 in. | 85 lb | Top Clamp, Large |
Top Clamp through-hole diameter
| Product | Hole Diameter (without bushing) |
| Top Clamp Small | 3/16 in. |
| Top Clamp Medium | 3/16 in. |
| Top Clamp Large | 1/4 in. |
Technical Specifications
- SKU W5050
- Weight Capacity 45 lb (20 kg) per Steel Cable
- Cable/Rod Presentation Suspended
- Legacy Systems Families Not Applicable
