E-Clip Cable Clamp

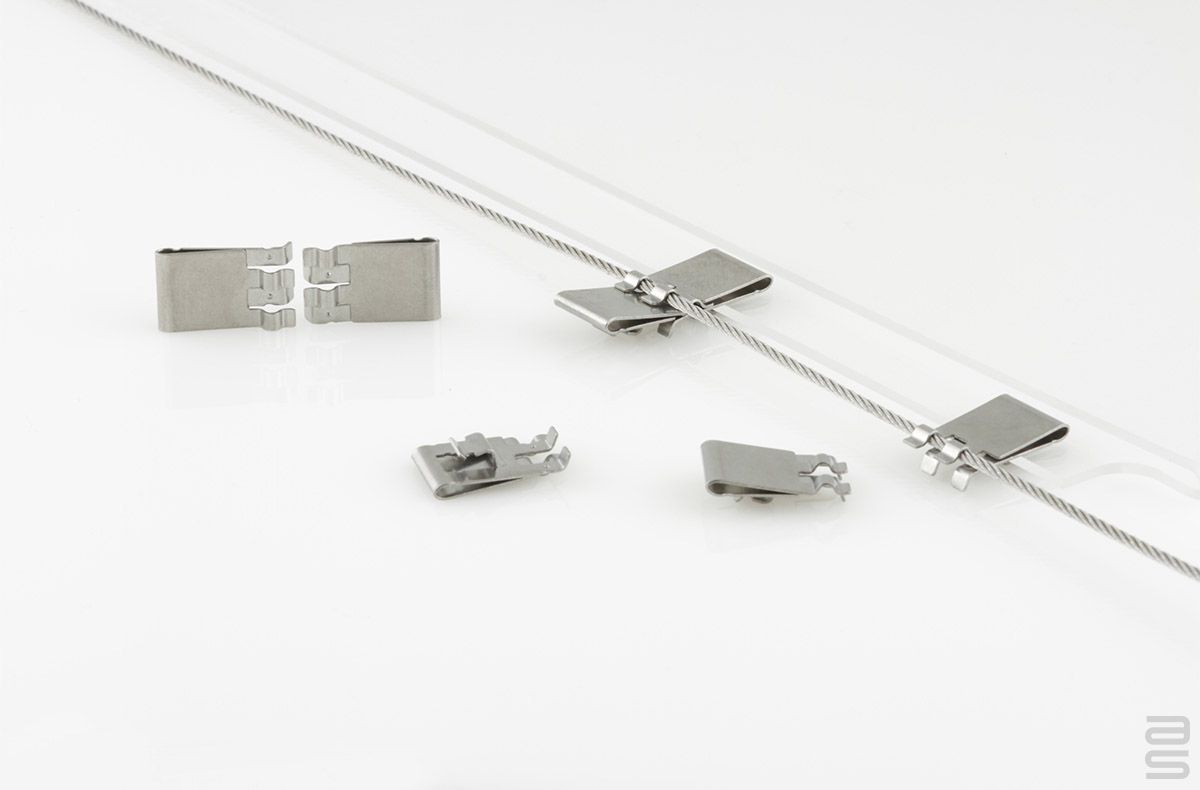

This fitting, part of a series of hardware particularly designed for presenting panels of all types, clips onto the sides of 1/8 inch thick material such as acrylic panels for which it is well matched. This spring steel fitting does not use set screws and so it very quick to use. It hold panels in a vertical axis. Typically these are used in sets of four to hold one of our acrylic pockets, one E-Clip at each corner. In this way they simulate a single-sided side clamp. However, the clever way in which the grasping fingers are offset allows an E-Clip to be installed opposing another from the same cable. In this configuration they simulate a double-sided side clamp.

Not suitable for glass and should be considered a budget solution for attaching 1/8 inch thick acrylic panels to our cables.

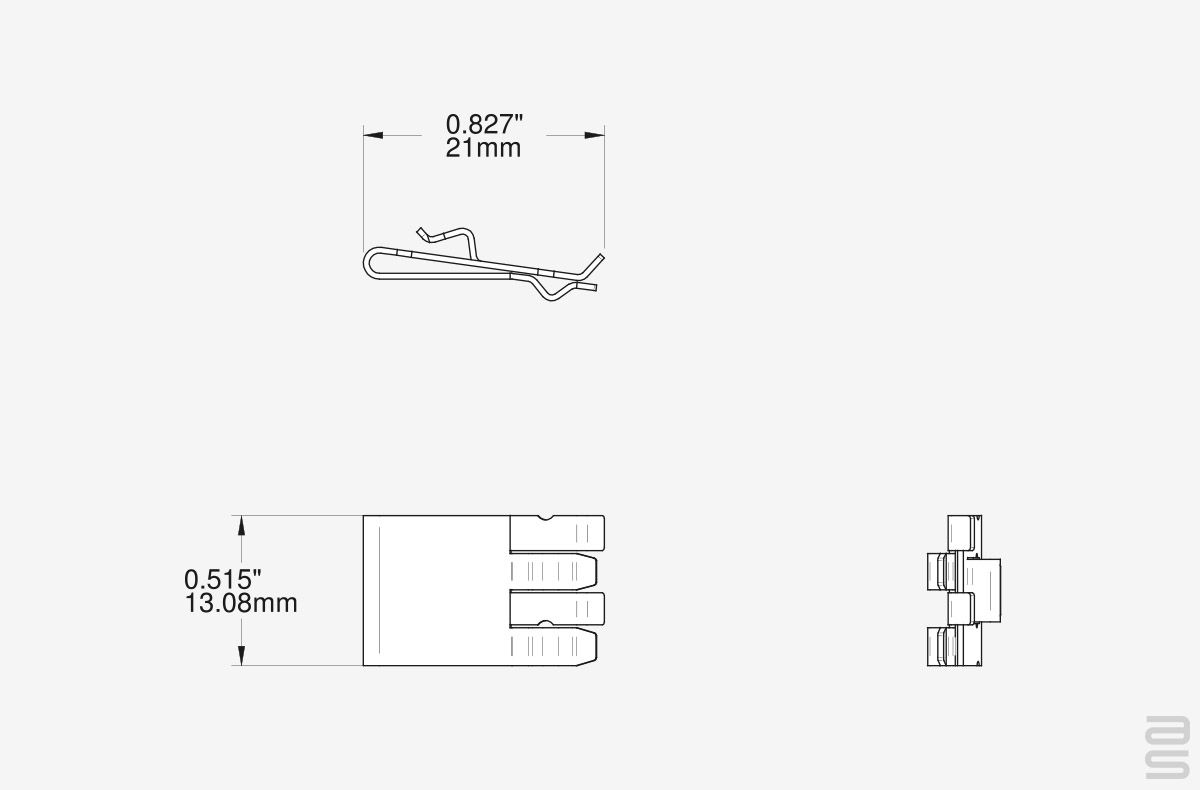

Maximum opening: E-Clips are particularly designed to grasp the edges of 1/8" thick material such as acrylic panels and other similarly rigid panels.

E-Clip is available in 4 pieces pack.
