Tracks FAQs
Find clear, practical answers about AS Hanging tracks, including how to install them, where to mount them, and what wall types are compatible.
How do I install an AS Hanging Track?
Where to find installation videos and track-specific instructions.
What is the best way to install the wall track perfectly level?
Tips for ceiling-line installs, marking holes, and using a level or laser.

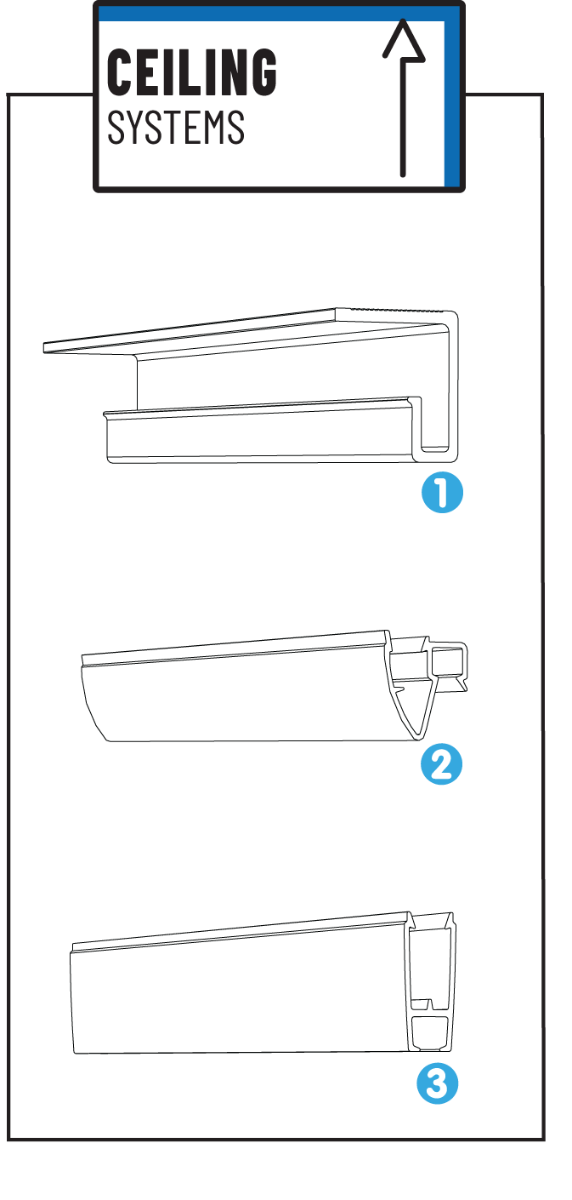

At what distance from the ceiling should I install the rail or track?
Placement guidance for wall tracks versus ceiling tracks.
Can I cut the track to size?
How to cut aluminum track cleanly and why burr-free cuts matter.
Can I paint tracks to match my wall or ceiling?
Which finishes are paint-friendly and what to avoid when painting the track slot.
Which wall types can I install an AS Hanging track on?
Drywall, plaster, brick, concrete, tile, and important fastener and connector notes.
Still need help?
Our team can help you pick the right track and mounting approach for your wall type and project.
How will my artwork connect to your art hanging systems?
While our art and picture hanging systems do not have specific requirements, here are tips for optimizing the presentation of your display materials. We have created a series of "How To" guides for making your presentation effective, especially for framed art. You can download these guides from our website or read them on our blog.

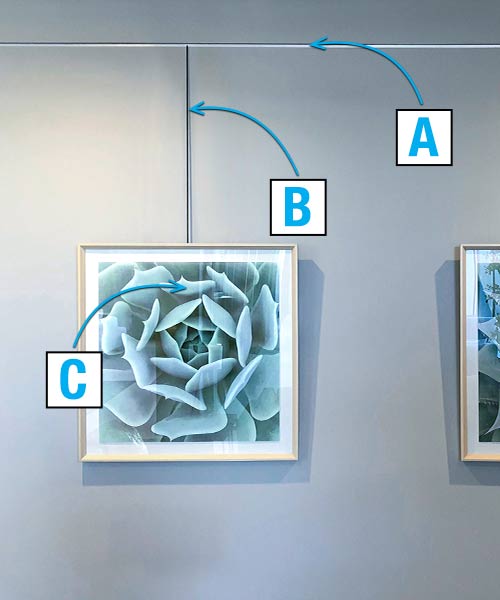

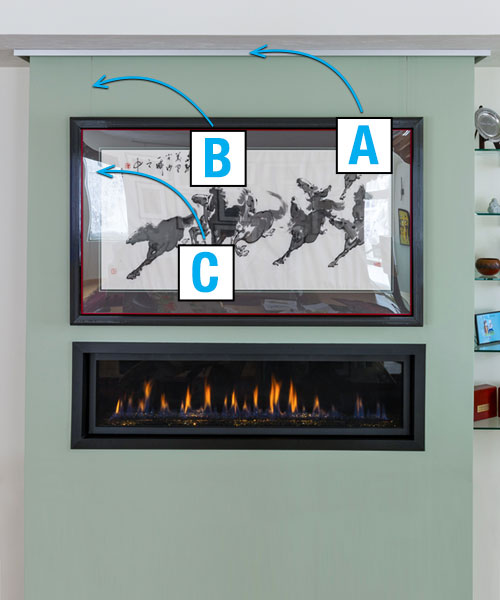

A hanging system consists of 3 elements. First, install a track on the wall or ceiling, or there's also the option of using Fixed or Articulated Piers. Once the track is installed, insert a cable/cord/rod, which you can move from left to right along the entire length of the track.
Our cables are offered in 48, 72, 96 or 120 inches, and can even be custom-made. The stainless steel cables support 45 lb. Our nylon cords are the same length and support 15 lb.
Our aluminum or stainless steel rods are offered in 24, 48, 60 or 72 inches long and support between 70 and 110 pounds.
The third element is the hook. Insert a hook onto the cable/wire/rod. We offer a variety of hooks with different functions. Choose from self-gripping hooks and screw hooks. We also have a range of anti-theft hooks. To hang your panels, we offer a variety of Panel hooks as well.
The hook is the point of contact between your artwork and the hanging system. No matter which fixation is on the back of your artwork/frame/object, no matter whether the rear side of your hanging objects is prepared, we've got a hook for your needs:
- Frame with metal wire, eyelet or D-Ring
- Plaques with a horizontal slot or keyhole
- French cleats
- Sawtooth hanger
- Glass panels
- All types of sign substrates such as rigid Sintra, or plexiglass and crushable foam core
- All types of panels such as wood, aluminum, etc.
- Aluminum frames

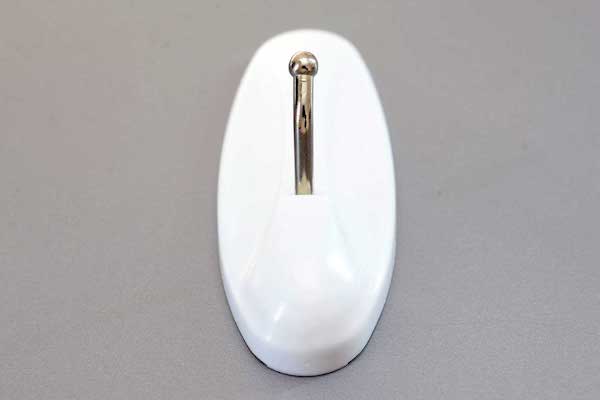

We also offer frame hangers to install on your artwork if it doesn't have one: Frame D-Ring, Picture Hangers, Screw In Hooks, Adhesive Hangers, etc.
On which wall types can I install an AS Hanging track?
In most cases, AS Hanging tracks can be installed on almost all wall types, as long as you use the right fastener for your surface and follow the track installation guide.
Wall types that typically work

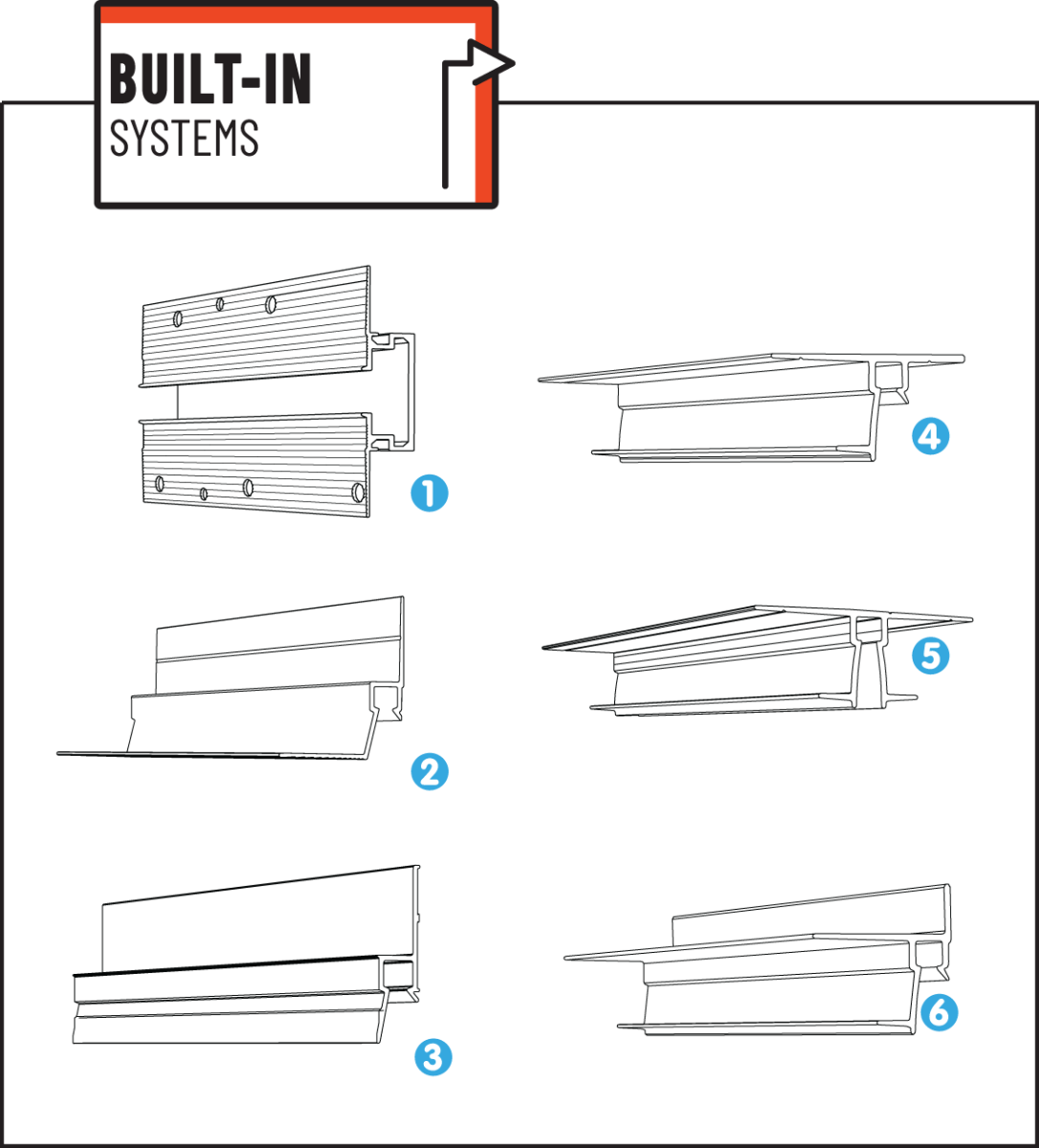

AS Hanging tracks are commonly installed on drywall, plaster, brick, concrete, and even ceramic tile. Mounting fasteners are included with wall tracks, and some built-in tracks also include hardware.
Included hardware and why fastener choice matters
Included hardware typically consists of screws and Triple Grip anchors. Triple Grip anchors are rated for use in drywall (3/8 in, 1/2 in, 5/8 in), brick, plaster, concrete, and ceramic tiles.
Warning: installer must choose the correct fastener
The correct fastener is critical for weight capacity and safety. The installer is ultimately responsible for determining the most appropriate fastener or fasteners for the specific installation and wall type.
Connector note for specific track types
Plastic connectors are supplied only for Click Rail, Up Rail, and Xpo Rail tracks. To install tracks with connectors, the wall or ceiling must be straight and even.
Glass wall note
Note: wall tracks do not install on glass
Installing a wall track on glass is not possible. If your project involves glass walls, a ceiling-mounted track is typically the better option.
Next step
Always refer to the installation guide that comes with your shipment and follow the recommended steps for your specific track and wall material.
-
