Articulated Pier Set
Articulated Pier Set Articulated Pier Set Articulated Pier Set Articulated Pier Set Articulated Pier Set Articulated Pier Set

Articulated Pier Set

In stock
SKU
U5520

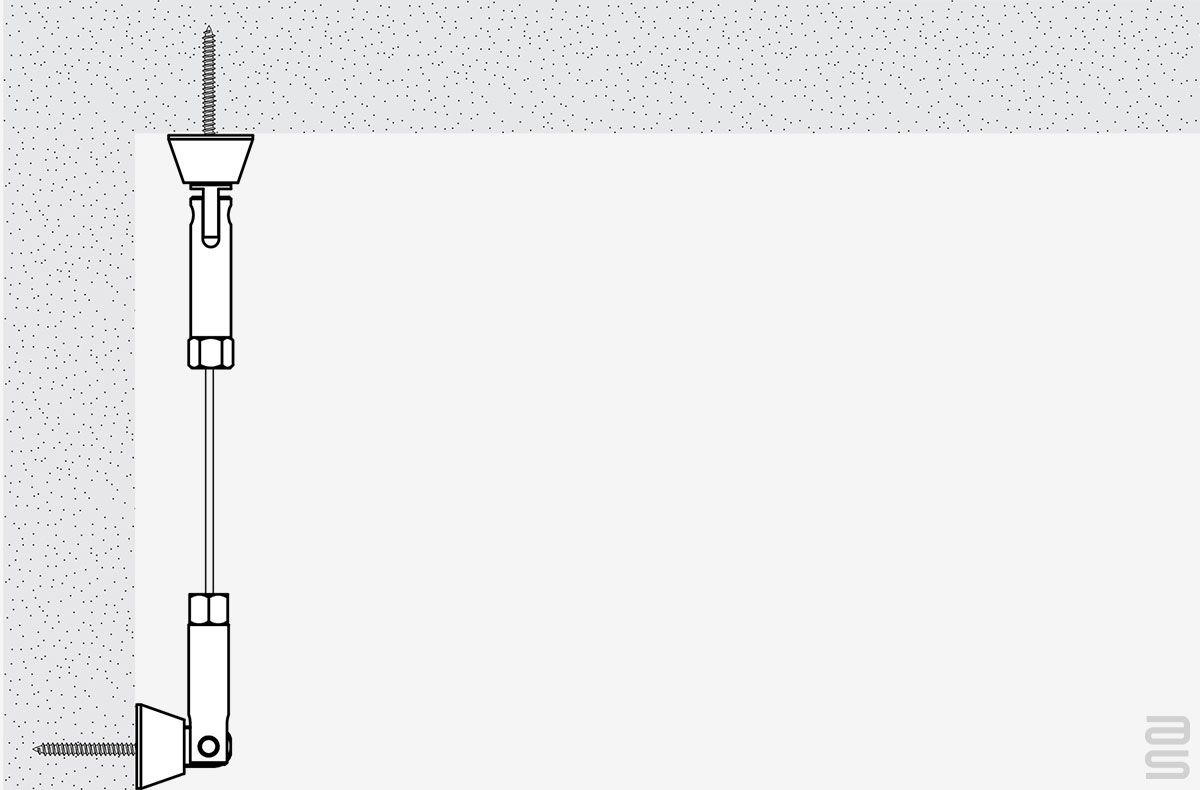

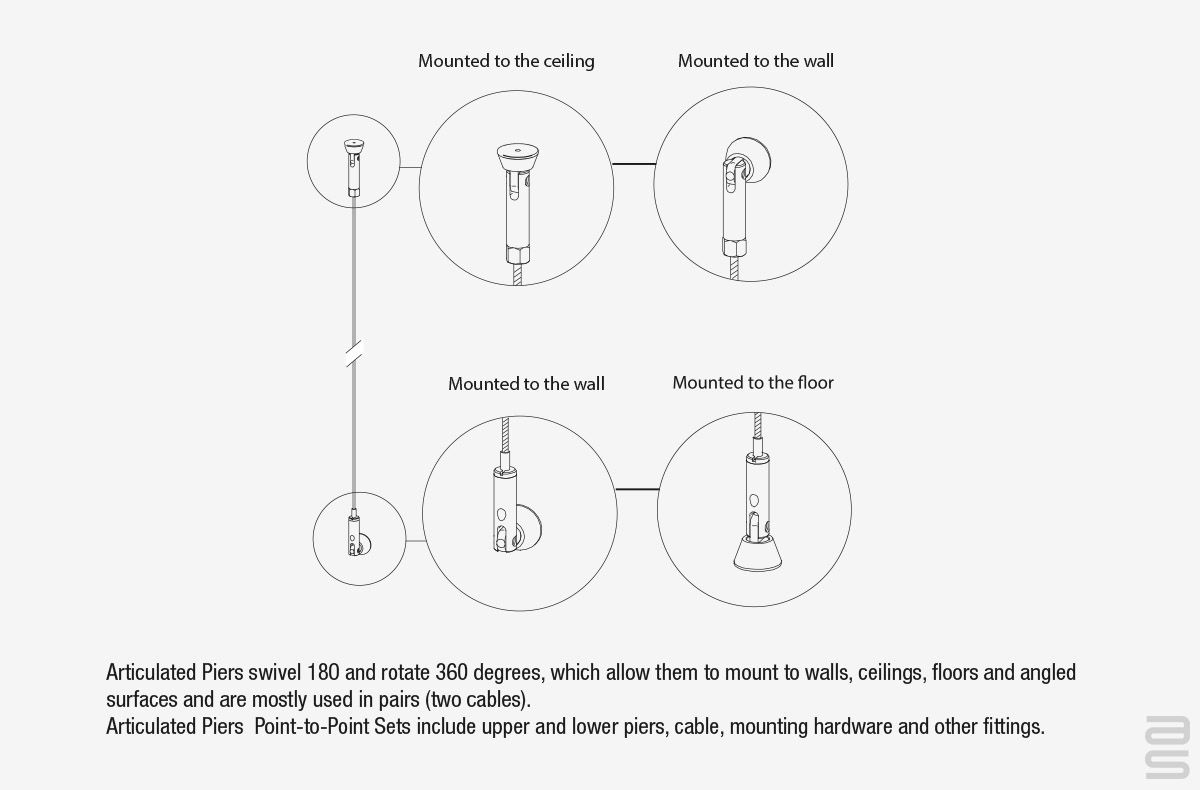

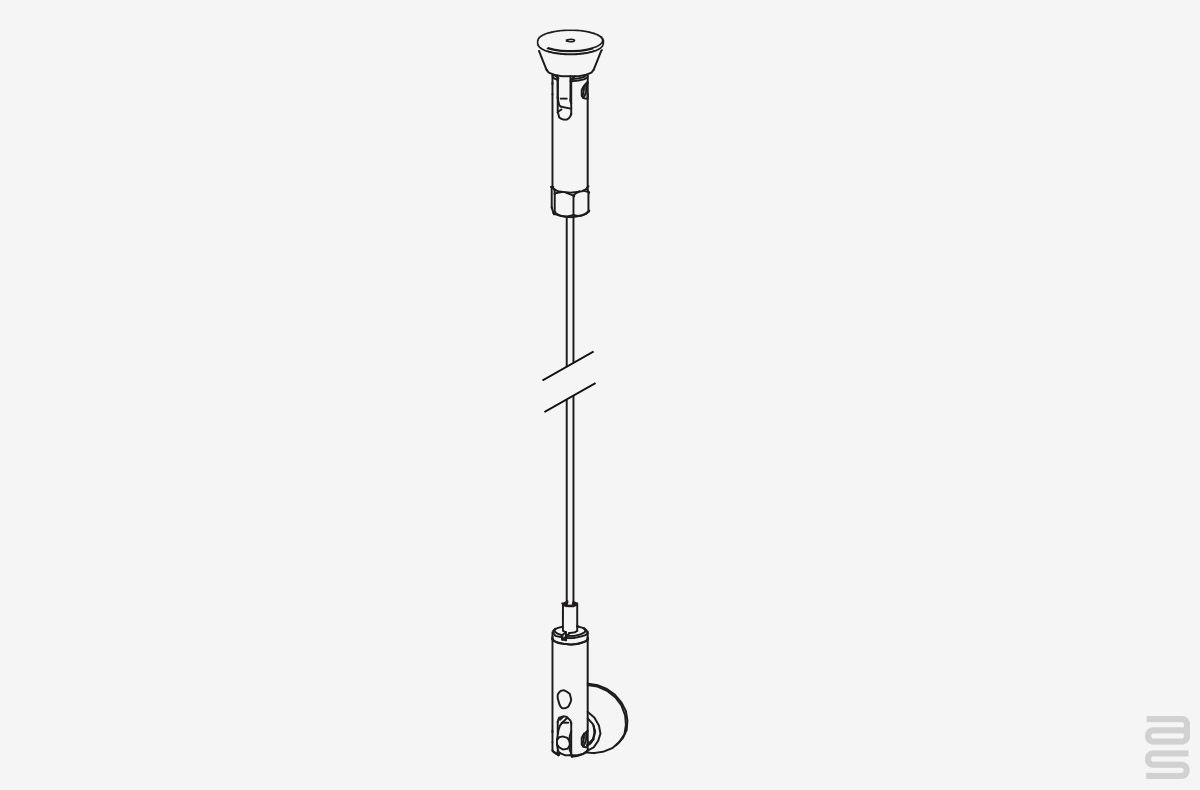

Articulated Piers swivel 180 and rotate 360 degrees, which allow them to mount to walls, ceilings, floors and angled surfaces and are mostly used in pairs (two cables).
See full product description »
Starting at C$38.06 /ea.
  • Finish : Machined Aluminum

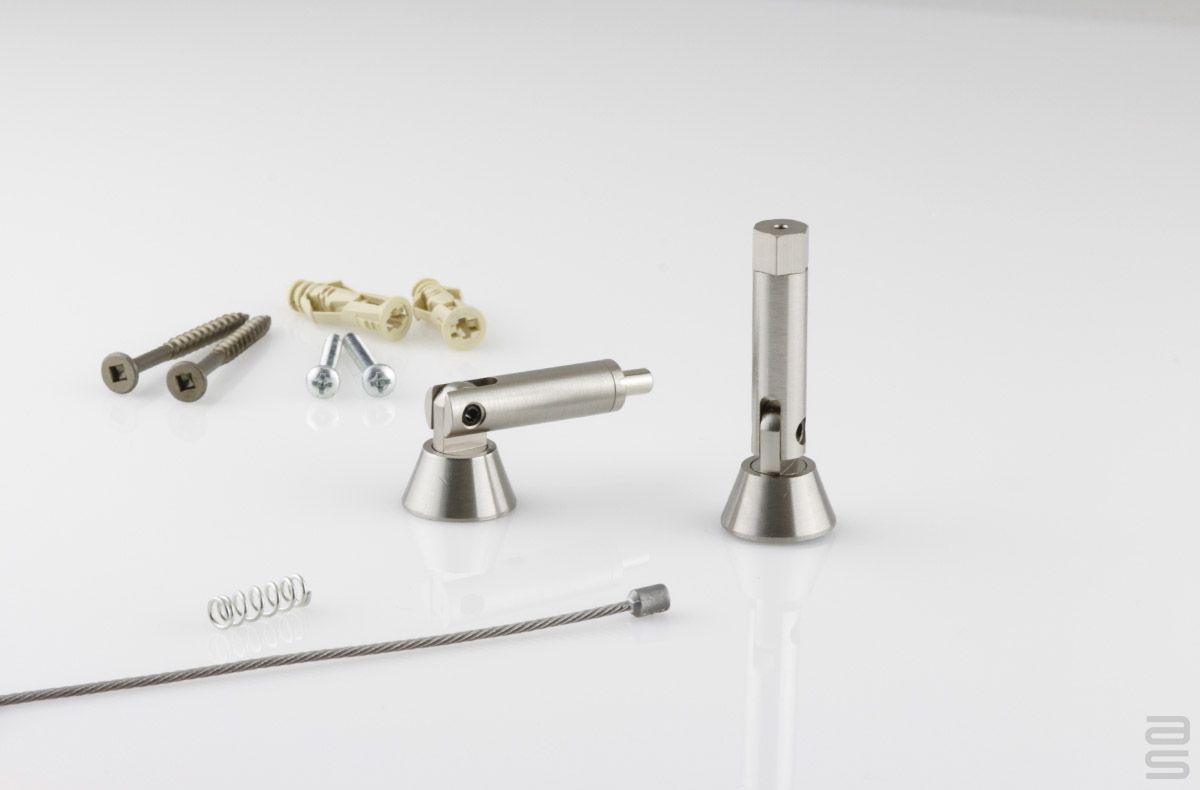

  • Includes : Hex Nut Articulated Pier, Self-Gripping Articulated Pier, Barrel-End Stainless Steel Cable 120 in (10 ft) / 305 cm, Compression Spring, 2X #6 x 1¼ in. screws with TripleGrip™ anchors, 2X #6 x 2 in. wood screw
  • Installation Surface : Ceiling, Floor, Wall
  • Weight Capacity : 33 lbs / 15 Kg (per pier)
  • Cable Presentation : Tensioned

Articulated Piers swivel 180 and rotate 360 degrees, which allow them to mount to walls, ceilings, floors and angled surfaces and are mostly used in pairs (two cables). These are only to be used with cables running in a vertical axis, never in a horizontal manner.

The hardware included in this assortment may be used to mount a pier base to brick, cement, plaster, ceramic surfaces and structural wood. To mount the piers to gypsum board (drywall) please also order our Decorative Mounting Plates, which include Wing Toggles.

NOTE:

It is the responsibility of the installer to select the proper mounting hardware for a particular installation.

Rated Strength: The weight capacity of an individual pier/steel cable may be as low as 5 lbs., (static load), depending on the mounting hardware and installation surface and technique. The Upper Pier and supplied cable are rated at 33 lbs.

Step 3

Go to
Step 3

Step 2

Go to
Step 2

Step 1

This product
is part of
Step 1

  • SKU U5520
  • Finish Machined Aluminum
  • Includes Hex Nut Articulated Pier, Self-Gripping Articulated Pier, Barrel-End Stainless Steel Cable 120 in (10 ft) / 305 cm, Compression Spring, 2X #6 x 1¼ in. screws with TripleGrip™ anchors, 2X #6 x 2 in. wood screw
  • Installation Surface Ceiling, Floor, Wall
  • Weight Capacity 33 lbs / 15 Kg (per pier)
  • Cable Presentation Tensioned
  • Installation Skill Do-It-Yourself
  • Product Marking =AS=
  • Legacy Systems Families Tensioned Cable System
